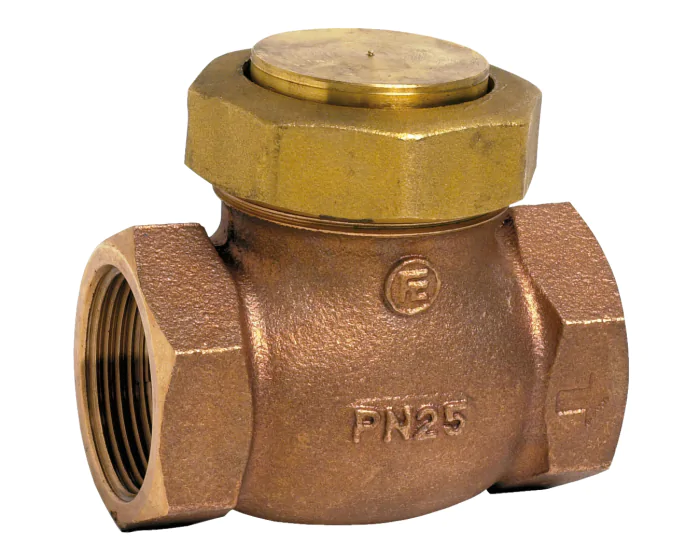

The 354 series vertical lift check valve, or piston check valve, is made of bronze with PTFE tightness, female BSP cylindrical threaded, horizontal mounting, for heating networks, water supply, distribution networks, compressed air.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Mounting direction | Horizontal |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Closure member material | PTFE |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.0 |
| Fluid | Cold water |
| Gasket | PTFE |
| Body material | Bronze |
| PS (bar) | 25 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| CE | Yes |
| Obturator type | Piston |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Piston 1/4'' | 354002 | S1010807 |
€42.04
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 3/8'' | 354003 | S1010808 |
€42.04
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1/2'' | 354004 | S1010809 |
€47.80
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 3/4'' | 354005 | S1010810 |
€64.91
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1'' | 354006 | S1010811 |
€89.24
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1''1/4 | 354007 | S1010812 |
€145.06
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1''1/2 | 354008 | S1010813 |
€178.33
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 2'' | 354009 | S1010814 |
€266.06
(excl. btw)
|
add to cart |
